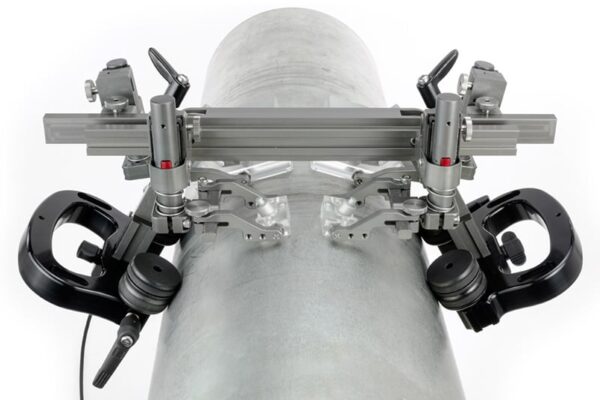

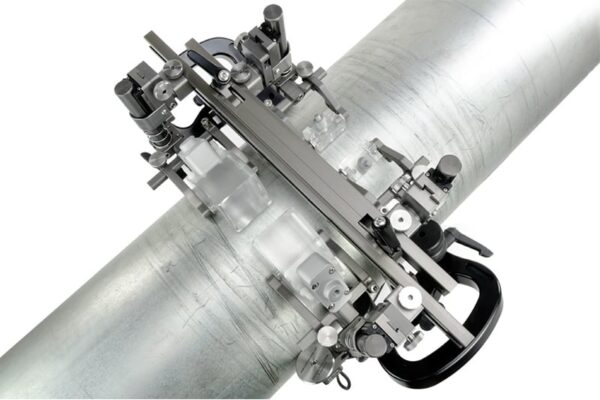

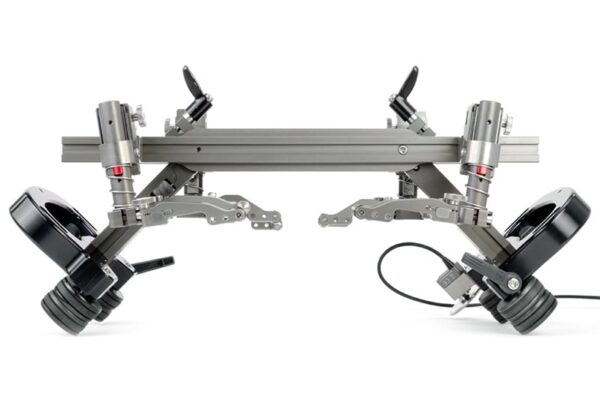

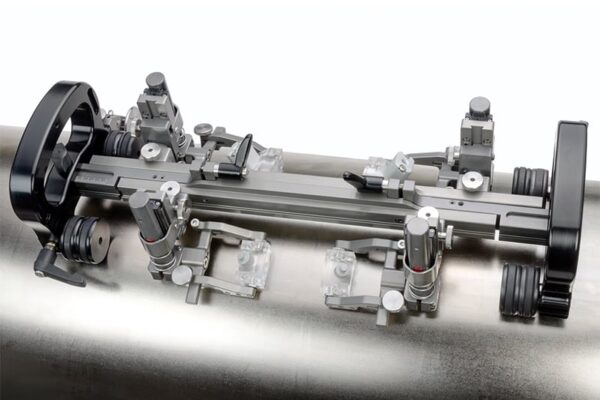

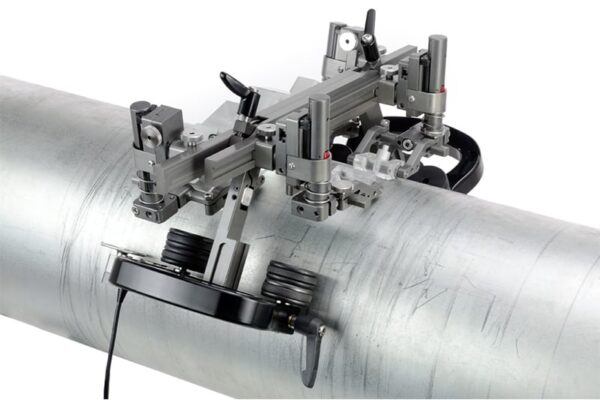

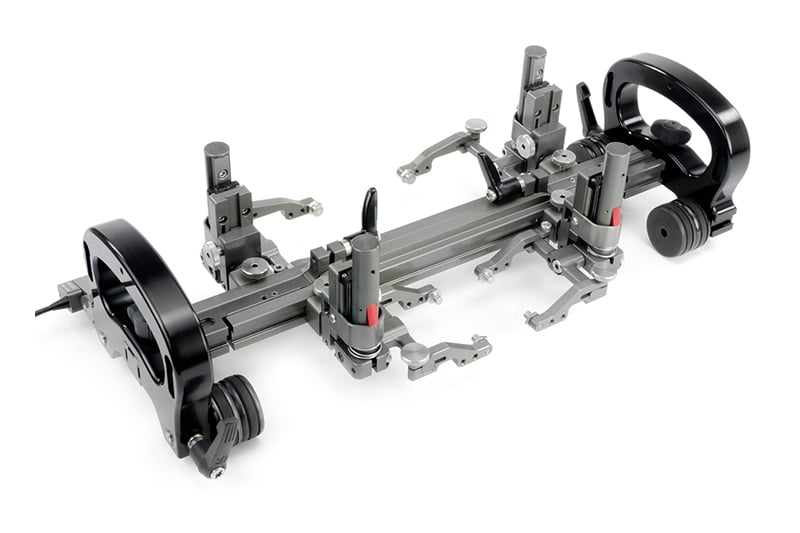

The Stix – BGG009 is a manual magnetic scanner designed for longitudinal weld inspection. Featuring magnetic wheels and a trailing encoder, this long seam scanner is designed to translate two phased array probes and two TOFD probes along ferrous scan surfaces. While capable of circumferential scanning on pipes as small as 25.4 cm (10 in), this scanner will also scan longitudinally from 15.2 cm (6 in) to flat.
Features Scan Versatility
Engineered to perform both long seam and circumferential scanning. Long Seam Frame
A dual pivot frame bar accommodates 4 probe longitudinal scans. Circumferential Scanning
Conversion to between circumferential and longitudinal is quick and simple. Magnetic Wheels
Operate on vertical, horizontal and inverted surfaces. Ease of use
Comfortable handles provide excellent scanner control as well as mounting points for accessories. Trailing Encoder
The spring loaded, trailing encoder maintains constant surface contact to ensure accurate scanner positioning. Brakes
Position the scanner where required. Warranty
All Jireh products are backed by a three year limited warranty
Specification
Circumferential Pipe Range
25.4 cm (10 in) to flat Longitudinal Pipe Rage
15.2 cm (6 in) to flat Radial Clearance
Longitudinal 14 cm (5.5 in)
Circumferential 11.4 cm (4.5 in) Encoder Resolution
9.05 counts/mm (230.0 counts/in) Encoder Cable Length
5 m (16.4 ft)² Inspection Surface
Ferrous materials Probe Holding Capacity
2 phased array and 2 TOFD wedges
| Clearance, Long Seam: | 14 cm (5.5 in) |
|---|---|
| Clearance, Circumferential: | 13.06 cm (5.14 in) |
SIZE & WEIGHT
| Frame Height: | 10.5 cm (4.1 in) |
|---|---|
| Frame Height (Pivot): | 19 cm (4.5 in) |
| Frame Width: | 17.5 cm (6.9 in) |
| Frame Length: | 45.5 cm (17.9 in) |
| Frame Length (Pivot): | 35.0 cm (13.7 in) |
| Frame Weight: | 1.9 kg (4.25 lb) |
